In today’s rapidly evolving technology landscape, a few innovations have brought as much excitement and creativity as the 3D printer. Imagine being able to get your wildest ideas to life, layer by layer, right before your eyes. That’s the magic of 3D printing—a revolutionary process that turns digital dreams into tangible reality.

In this article, we’ll explain the fundamentals of 3D printing, breaking down complex concepts into simple, easy-to-understand explanations. From the basic principles to the intricate structures and various types of 3D printers, we’ll highlight the secrets behind this groundbreaking technology.

Let’s take a leap into a world where imagination knows no bounds, where innovation thrives, and where the future is built, one layer at a time. Let’s discuss the details of 3D printing and discover its endless possibilities for shaping our world.

What is a 3D Printer?

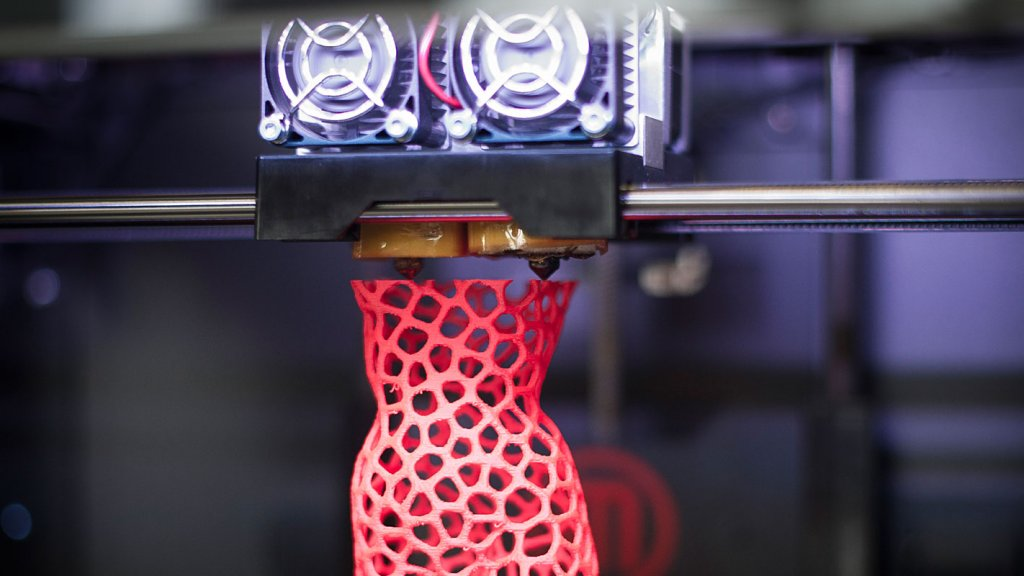

3D Printing

In simple terms, a 3D printer is a remarkable device that brings digital designs to life by creating three-dimensional objects layer by layer. It’s like having a magic box that can turn virtual concepts into physical realities. Instead of traditional manufacturing methods that involve cutting or molding material, 3D printing adds material precisely where needed, building up the object from the bottom up.

This process, also known as additive manufacturing, opens up possibilities for creating everything from simple toys to complex machine parts with impeccable detail and precision. A 3D printer is a tool of innovation, creativity, and endless potential.

How Does a 3D Printer Work?

Unlike traditional manufacturing methods that involve subtracting material, like carving from a block of wood or metal, 3D printing operates on the addition principle. It starts with a digital design created using specialized software or obtained through 3D scanning of an existing object. This design is then cut into thin horizontal layers using slicing software.

Here’s the breakdown:

1. Digital Design: It all starts with a digital blueprint of the object you want to create. This can be crafted using computer-aided design (CAD) software or obtained from a 3D scan of an existing object. This digital model serves as the blueprint for the physical object.
2. Slicing: Next, the digital model is sliced into thin horizontal layers using slicing software. Each slice will guide the 3D printer in creating the physical object layer by layer.
3. Printing: With the digital model sliced and ready, the 3D printer begins working. Depending on the type of printer and material used, the printing material starts by heating or liquefying it. Then, with remarkable precision, the printer deposits or solidifies this material layer by layer, following the instructions from the sliced digital model.
4. Post-Processing: The object may require finishing touches. This could involve removing any support structures used during printing, smoothing out rough edges, or applying additional treatments like painting or polishing to achieve the desired look and feel.

And just like that, what was once a digital concept is now a physical reality, brought to life through the powerful 3D printer. It’s a machine that combines cutting-edge technology with boundless creativity, empowering individuals and industries to innovate, create, and shape the future.

Structures of 3D Printer.

Understanding the structures of a 3D printer is like unlocking the inner workings of a marvel of modern engineering. Let’s break it down:

• Frame: The core of every 3D printer is its frame. This sturdy structure provides the foundation and support for all other components. Typically made from metal or durable plastic, the frame ensures stability during printing, preventing unwanted vibrations or movements that could affect print quality.
• Build Platform: The build platform is the surface upon which the object is created layer by layer. Depending on the material, it may be heated or cooled to ensure proper adhesion and prevent warping during printing.
• Extruder/Nozzle: The extruder feeds the printing material, whether filament, resin, or powder, to the printing nozzle. The nozzle deposits this material onto the build platform or previous layers, carefully crafting each object layer according to the digital design.
• Control System: Every 3D printer needs a brain to guide the printing process, and that’s where the control system comes in. This includes electronics, firmware, and software that work together to interpret the digital model, control the movement of the print head, and regulate other parameters such as temperature and speed. The symphony conductor is 3D printing, ensuring each layer is laid down precisely and accurately.
• Cooling System: Some 3D printers are also equipped with a cooling system to regulate the temperature of the printed layers. This helps prevent overheating and ensures that each layer solidifies properly before adding the next one. It’s like allowing the printed object to catch its breath and set itself firmly in place.

Together, these components form the intricate structure of a 3D printer, working in harmony to bring digital designs to life layer by layer. It’s a blend of engineering and creativity, turning imagination into reality with each pass of the print head.

Types of 3D Printer.

3D printers come in various types, each with unique features and benefits, making them suitable for various tasks and projects. From Stereolithography to Selective Laser Melting, we will consider these technologies and see how they work their magic in bringing digital designs to life. Let’s get right into it.

Stereolithography (SLA).

Stereolithography

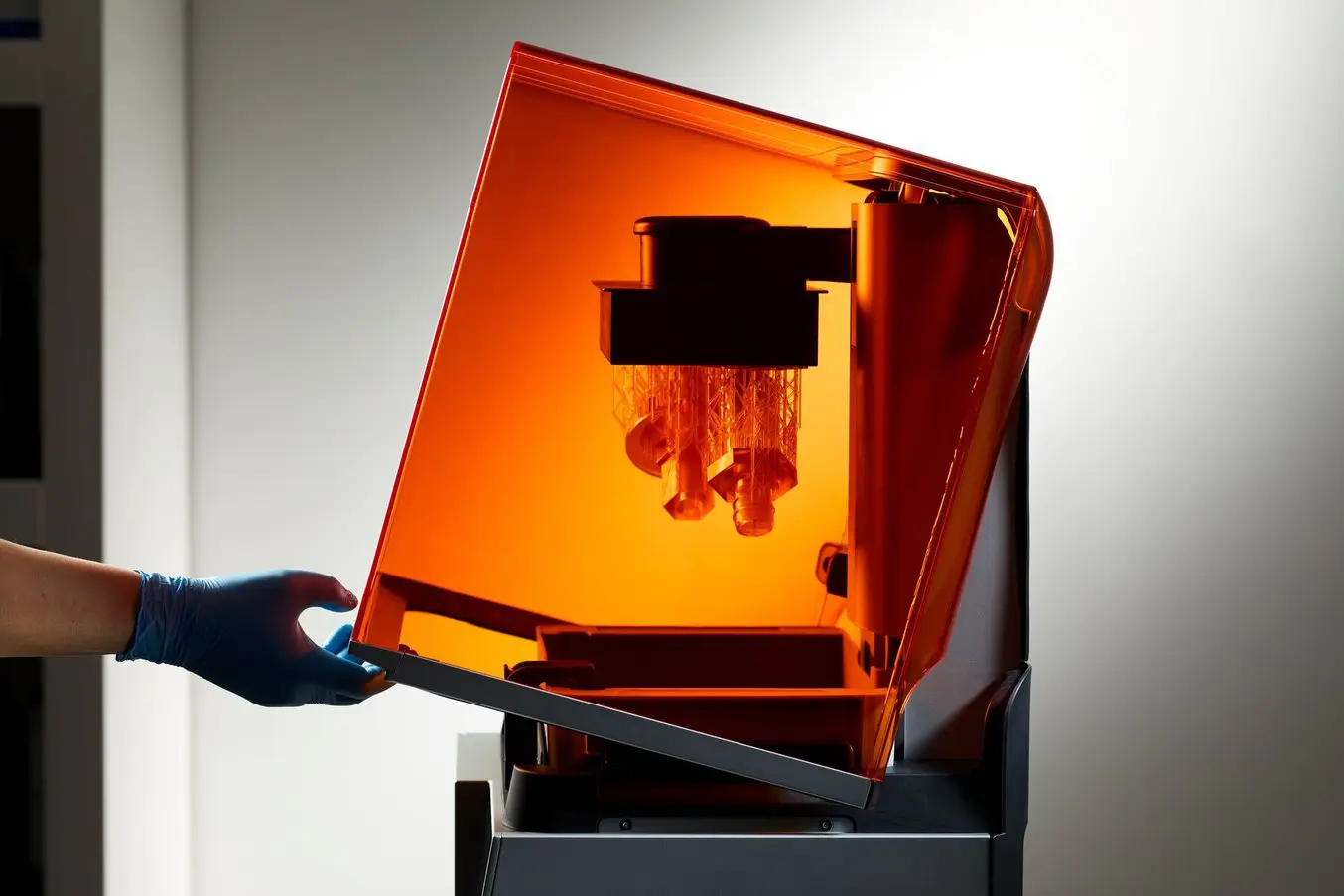

Stereolithography, or SLA for short, is a 3D printing technology that uses photopolymerization to create objects. In simple terms, it uses a UV laser to selectively solidify a liquid resin, layer by layer, according to the digital design. This method results in highly detailed, accurate prints with smooth surface finishes.

Pros:

• High Detail: SLA printers excel at producing intricate and detailed objects, making them ideal for applications where precision is paramount, such as jewelry making and dental models.
• Smooth Surface Finish: The layer-by-layer curing process results in smooth surface finishes, reducing the need for extensive post-processing.
• Wide Material Selection: SLA printers support various materials, including rigid, flexible, and transparent resins, offering versatility for various applications.

Cons:

• Limited Build Volume: SLA printers typically have smaller build volumes than other 3D printing technologies, restricting the size of objects that can be printed in a single run.
• Support Removal: Objects printed using SLA often require support structures during printing, which can be challenging to remove and may leave behind marks or require additional post-processing.
• Material Handling: The resin used in SLA printing can be messy and requires careful handling, including proper ventilation and post-curing steps to ensure optimal properties.

Selective Laser Melting (SLM).

Selective Laser Melting

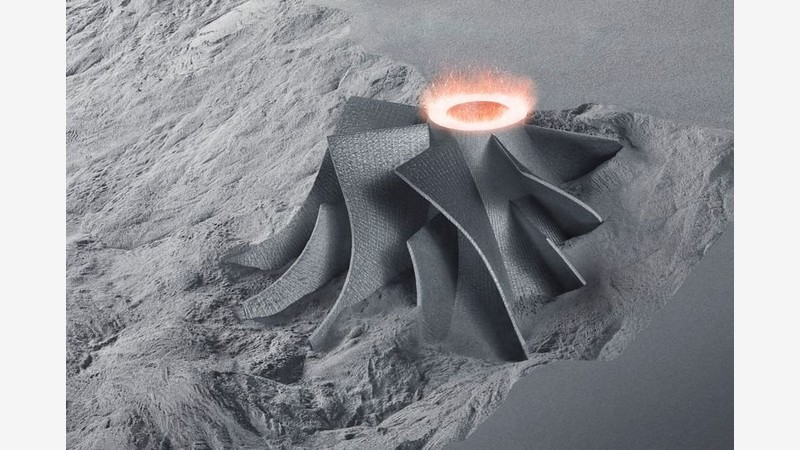

Selective Laser Melting (SLM) is a 3D printing technology primarily used for metal additive manufacturing. In SLM, a high-powered laser selectively melts metal powder layer by layer, fusing the particles to create solid objects. This precise melting process enables the production of complex geometries and fully dense metal parts with excellent mechanical properties.

Pros:

• High Mechanical Strength: SLM produces parts with superior mechanical properties, making them suitable for demanding applications in industries such as aerospace, automotive, and healthcare.
• Complex Geometries: The layer-by-layer melting process creates intricate and complex geometries that would be difficult or impossible to achieve with traditional manufacturing methods.
• Wide Range of Materials: Like SLA, SLM supports a variety of metal materials, including stainless steel, titanium, aluminum, and nickel-based alloys, offering flexibility for diverse applications.

Cons:

• High Cost: SLM printers and metal powders can be expensive, making this technology less accessible for small businesses and hobbyists.
• Post-Processing: Parts produced with SLM may require post-processing steps such as heat treatment, machining, or surface finishing to achieve the desired properties and surface quality.
• Build Size Limitations: SLM printers often have smaller build volumes than other 3D printers, limiting the size of parts produced in a single run.

Selective Laser Sintering (SLS).

Selective Laser Sintering

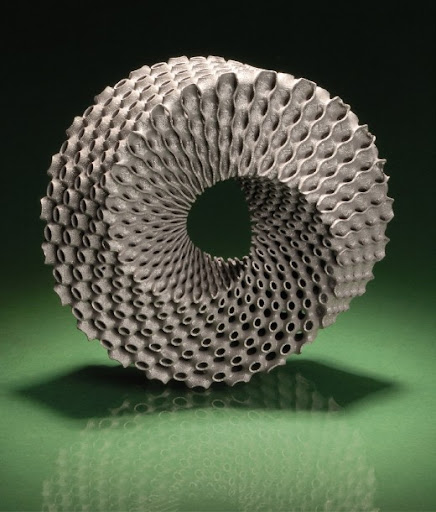

Selective Laser Sintering (SLS) is a 3D printing technology commonly used for producing functional prototypes and end-use parts. In SLS, a high-powered laser selectively heats and fuses powdered material, typically nylon or polyamide, layer by layer to create solid objects. The unsintered powder surrounding the printed part acts as natural support during printing, producing complex geometries without additional support structures.

Pros:

• No Support Structures: SLS eliminates the need for support structures since unsintered powder serves as natural support, allowing for the easy production of complex and intricate geometries.
• Wide Material Selection: SLS supports a variety of materials, including engineering-grade plastics, composite materials, and even metal powders, offering versatility for various applications.
• High Accuracy and Detail: SLS produces parts with high accuracy and detail, making it suitable for applications where precision is critical, such as aerospace components and medical devices.

Cons:

• Surface Finish: Parts produced with SLS may have a rougher surface finish than those produced with other 3D printing methods, requiring additional post-processing steps to achieve a smoother surface.
• Powder Handling: Handling powdered material can be messy and requires specialized equipment for storage, handling, and disposal, adding complexity to the printing process.
• Equipment Cost: SLS printers and materials can be expensive, making this technology less accessible for small businesses and hobbyists than other 3D printing methods.

Digital Light Processing (DLP).

DLP 3D Printing

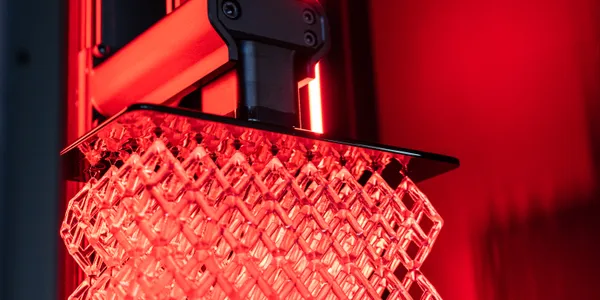

Digital Light Processing (DLP) is a 3D printing technology that uses a digital light projector to cure liquid resin layer by layer, creating solid objects. Unlike traditional stereolithography (SLA) printers, which use a single-point laser, DLP printers cure entire layers simultaneously, resulting in faster print times.

Pros:

• Speed: DLP printers are known for their fast printing speed due to the simultaneous curing of entire layers, making them ideal for rapid prototyping and short production runs.
• High Resolution: This printer can produce highly detailed and accurate prints, suitable for applications requiring intricate geometries and fine features.
• Wide Material Selection: DLP printers support various materials, including flexible and biocompatible resins, offering versatility for different applications and industries.

Cons:

• Limited Build Volume: Smaller build volumes than other 3D printing technologies restrict the size of objects that can be printed in a single run.
• Surface Finish: While high-resolution prints are achievable, the layering effect of the curing process may result in a slightly rougher surface finish compared to other methods.
• Support Removal: Objects printed with DLP may require support structures during printing, which can be challenging to remove and require additional post-processing.

Conclusion.

In conclusion, 3D printing comes in various types, each with distinct advantages and drawbacks. Every method caters to different needs and applications, from the intricate precision of SLA to the rapid speed of DLP and the versatility of SLS to the robustness of SLM. While these technologies have improved industries, weighing factors such as build volume and surface finish is essential when choosing the right one for a particular project or task.

As 3D printing continues to evolve, so do its possibilities. With ongoing technological advancements, materials, and applications, the future promises even greater innovation and creativity. Embracing this fantastic printing method means embracing a world where the boundaries of creative designs are stretched, and anything can be realized with a simple button.
